AMBICA High Speed Rotary Ultrasonic Vial/Ampoule Washing Machine

  • Suitable for washing vials from 2 ml to 100 ml or ampoules from 1ml to 20ml.
  • High pressure spray nozzles enter into the vials or ampoules and ensure perfect wash.
  • The entire washing process can be seen
  • All parts in contact with the wash fluid are made of SS 316 material
  • Washing sequence can be set as per the customer's requirements
  • The machine is equipped with PLC system and printing facilities with password.

Specification

Model no AEW-RG -150 AEW-RG -300 AEW-RG -400
Speed of machine Up to 150 Vial/ampoule per minute Up to 300 Vial/ampoule per minute Up to 400 Vial/ampoule per minute
Size of contain 2ml to 100ml vials 1 ml to 20 ml ampoule 2ml to 100ml vials 1 ml to 20 ml ampoule 2ml to 100ml vials 1 ml to 20 ml ampoule
Electric supply 5 HP, 3 Phase , 440 w 5 HP, 3 Phase , 440 w 5 HP, 3 Phase , 440 w
Height 900 mm (50 mm +/- adjustable) 900 mm (50 mm +/- adjustable) 900 mm (50 mm +/- adjustable)
Net Weight 1650 kg (Approx) 2050 kg (Approx) 2450 kg (Approx)
Gross Weight 2150 kg (Approx) 2550 kg (Approx) 2950 kg (Approx)

Injectable Liquid Filling with Rubber Stoppering Machine

  • Suitable for filling of 2 ml to 100 ml vials with help of syringe and change parts.
  • Filling volume adjustment by PLC.
  • Servo based PLC control with Touch Screen HMI.
  • Machine fitted with in-feed conveyor.
  • Co-eccentric nozzles allow very quick and precise filling.
  • No Vial- No Fill system.
  • No Vial - Machine Stop system.
  • All parts in contact with the liquid are made of SS 316 materials with silicone piping.
  • Rubber stopper of 13 mm, 20 mm and 32 mm (with the help of change parts).
  • Toughen Glass cabinet with S.S structure for machine.

Aluminum Cap Sealing Machine

  • All parts in contact with cap are made of SS 316 materials.
  • Safety clutch to avoid vial jamming
  • Sealing pressure can be adjusted to suit different gauges and sizes of aluminum caps
  • Digital counter for counting the number of sealed vials.
  • No Cap in Chute- Machine Stop system.
  • Toughen Glass cabinet with S.S structure for machine.

Online Visual Vial Inspection Machine

  • Suitable for 5ml to 30ml Vials.
  • No change parts required for changeover from 5ml to 30ml vials.
  • Machine will have two track for Model : AEWVl-120 and Four Track for model : AEWVl-250 of nylon Roller chain
  • The machine body made of SS 304 Pipes and Covered with SS 304Sheets.
  • Vial inspection is for Inspecting the Vials for breakage, Cap seal, carried out visually by the operator.

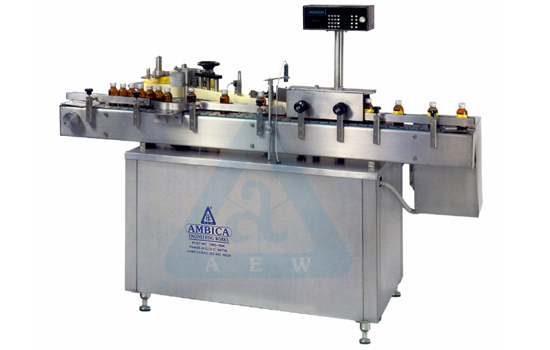

Sticker Labelling Machine

  • Suitable for round and flat containers
  • Up to 250 vials per minute (depending on the vial and label size).
  • The machine body is made of 55 304 pipes and covered with 55 304 sheets.
  • PLC based system with touch screen HMI.
  • Suitable for online Ink-Jet printing system
  • Easy to change the label application height.
  • Built-in speed Indicator and counter.
  • Pressing unit for round container labelling.
  • No change parts required

Packing Conveyor

  • Made of SS 304 pipes.
  • Tabletop is made of SS304sheets
  • Available as per customer's requirement (1O', 15', 18' length).
  • Conveyor belt is endless rubber belt.
