Ampoule Filling & Sealing Line : Servo Based – Fully Automatic – 12 Head – 8 Head – 6 Head

We are glad to introduce ourselves as a AMBICA ENGINEERING WORKS, ONE OF THE LEADING MANUFACTURER AND EXPORTER in Pharmaceutical Machineries.
  • We offer a broad range of pharmaceutical machineries manufactured as per the requirements of the clients, equipped with latest quality control & production facilities and highly skilled & motivated work force augur the demand for the following world class products.

Automatic High Speed Ampoule Filling & Sealing Line :

Ambica High Speed Rotary Ampoule Washing Machine

Specification

Model no AEW-RG -150 AEW-RG -300 AEW-RG -400
Speed of machine Up to 150 Vial/ampoule per minute Up to 300 Vial/ampoule per minute Up to 400 Vial/ampoule per minute
Size of contain 2ml to 100ml vials 1 ml to 20 ml ampoule 2ml to 100ml vials 1 ml to 20 ml ampoule 2ml to 100ml vials 1 ml to 20 ml ampoule
Electric supply 5 HP, 3 Phase , 440 w 5 HP, 3 Phase , 440 w 5 HP, 3 Phase , 440 w
Height 900 mm (50 mm +/- adjustable) 900 mm (50 mm +/- adjustable) 900 mm (50 mm +/- adjustable)
Net Weight 1650 kg (Approx) 2050 kg (Approx) 2450 kg (Approx)
Gross Weight 2150 kg (Approx) 2550 kg (Approx) 2950 kg (Approx)

Ambica High Speed Ampoule Filling & Sealing Machine – Servo Based

  • Suitable for filling range of 1 ml to 20 ml Ampoules with help of syringe and change parts.
  • Filling volume adjustment by PLC.
  • Servo based PLC control with Touch Screen HMI.
  • Machine fitted with in-feed conveyor.
  • Co-eccentric nozzles allow very quick and precise filling.
  • No Ampoules - No Fill system.
  • No Ampoules - Machine Stop system.
  • All parts in contact with the liquid are made of SS 316 materials with silicone piping.
  • Toughen Glass cabinet with S.S structure for machine.

Specification

Model no AEW-RG-150SC ARE-RG-300SC AEW-RG-400SC
Speed of machine Up to 150 /minute Up to 300/minute Up to 400/minute
Size of contain 1 ml to 25 ml ampoule
Up to 10 ml vial		 1 ml to 25 ml ampoule
Up to 10 ml vial		 1 ml to 25 ml ampoule
Up to 10 ml vial
Height 900 mm (50 mm +/- adjustable) 900 mm (50 mm +/- adjustable) 900 mm (50 mm +/- adjustable)
Sensors No ampoule no filling,
no vial no rubber
stoppering 		No ampoule no filling,
no vial no rubber
stoppering 		No ampoule no filling,
no vial no rubber
stoppering

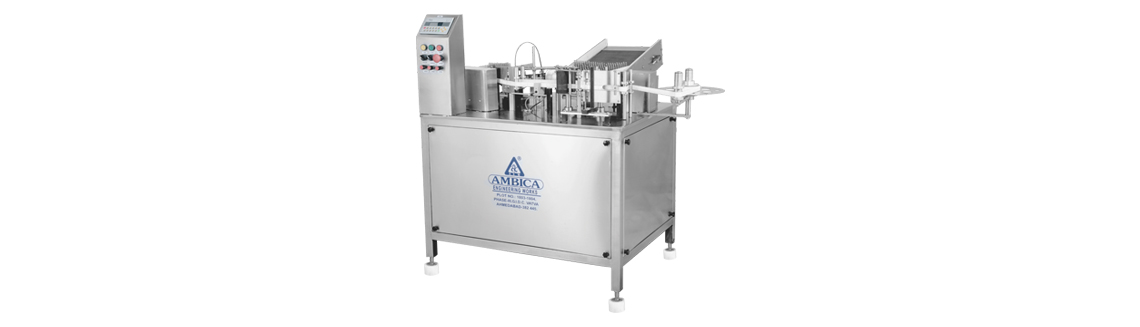

Ambica High Speed Ampoule Labeling Machine

Ampoule Labeling Machine
  • Suitable for round and flat containers.
  • Up to 250 vials per minute (depending on the vial and label size).
  • The machine body is made of 55 304 pipes and covered with 55 304 sheets
  • PLC based system with touch screen HMI
  • Suitable for online Ink-Jet printing system.
  • Easy to change the label application height.
  • Built-in speed Indicator and counter.
  • Pressing unit for round container labelling.
  • No change parts required.

Note :-

  • Our machines have been installed and are running successfully in India as well as abroad in Bangladesh, SriLanka, Vietnam, Russia, Malaysia
  • We welcome your enquiries and assure you of our prompt response to your particular needs from our products
  • For more information/details Please visit us at www.ambicashree.com / http://ambicashree.com/clients.html
